K Series Depanelizers for V Scored PCBs
The most effective way to singulate Pre-Scored boards is with circular blade depanelizers. FKN Systek provides a variety of machines for depaneling PCBs.
PCB Score-line specifications.
To singulate pre-scored boards with circular blade depanelizers it is recomended that the score-line angle be greater than 30 degrees and the remainder thickness of the score-line be between .012 " and .027". Singulating one score-line at a time is relatively forgiving. However, when designing panels for multiple blade score-lines, it is better to have a larger score angle of 45 degrees.
PCB Score-line specifications.
To singulate pre-scored boards with circular blade depanelizers it is recomended that the score-line angle be greater than 30 degrees and the remainder thickness of the score-line be between .012 " and .027". Singulating one score-line at a time is relatively forgiving. However, when designing panels for multiple blade score-lines, it is better to have a larger score angle of 45 degrees.
Depanelizers for Metal Cor PCBs and thin FR4 boards (.032")
K1010
-WE2bcf90008b.png)
K2010
K2020
Double blade set motorized depanelizers designed to singulate Metal Core PCBs in a two step process. The first set of blades reduces the parting line to foil thickness and the second set of blades shear to cleanly separate the panels into individual boards.
%20Rendering%20SW-WE97f62b355c.png)
Motorized circular blade depanelizer with XY table for thin PCBs.
Economic manually operated benchtop depanelizer for prototyping and low volume production.
The XY table with adjustable end stop rail can be used to steady small PCBs for quick and safe singulation.
Manual Circular on Linear Blade Depanelizers for 18" and 24" long Panels
K3000S
K300L24
The operator places the score-line of the PCB onto the linear blade and pulls the circular blade carriage across to cleanly separate the panels
K7000 12" linear blade with
simmetrical thin circular blades.
simmetrical thin circular blades.

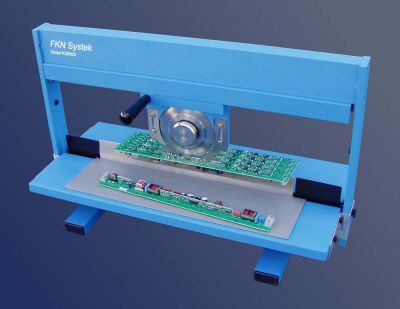

K3000S 18" Manual Linear Circular blade depanelizer
K3000L 24" Depanelizer
Motorized Circular on Linear Blade Depanelizers for 18",24" and 48" long panels
K4000L 24
K4000L 48
K4000
K4000 Motorized Circular Linear Blade Depanelizer for 18" panels. With optional output conveyor
K4000 L48 Motorized Circular Linear Blade Depanelizer for 48" panels.
K4000L Motorized Circular Linear Blade Depanelizer for 24" panels.
Multiblade Depanelizer for High Volume Production of standard panels and LED Strips
K5000
The blade cartridge can be changed out in minutes to set up for a new production run, or to change for a new set of blades to keep the line moving.
K8000 Adjustable Multiple blade depanelizer for removing carrier strips from skip routed PCBs
FKN SYSTEK, INC. - 115 Pleasant St., Millis, MA. 02054 ,
TEL: (508) 376-2500 FAX: (508) 376-2505 : E-MAIL: fkn@fknsystek.com
Copyright© 1997, 98 FKN Systek, Inc.08/17/03 Last Update 04//25/2019
TEL: (508) 376-2500 FAX: (508) 376-2505 : E-MAIL: fkn@fknsystek.com
Copyright© 1997, 98 FKN Systek, Inc.08/17/03 Last Update 04//25/2019
Tel. 508 376 2500
The K5000 Multiple Blade Depanelizer will singulate up to 10 panels 11.3" wide.
This system provides a rugged ,simple to operate solution for depaneling up to 10 PCB strips in one pass. Operator selects process speed and places panels onto the input conveyor. Processing speed will keep up with any reflow line output.
